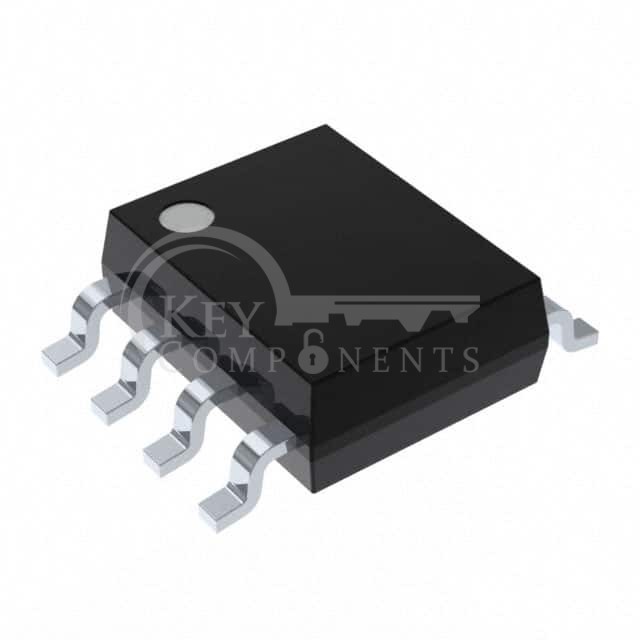

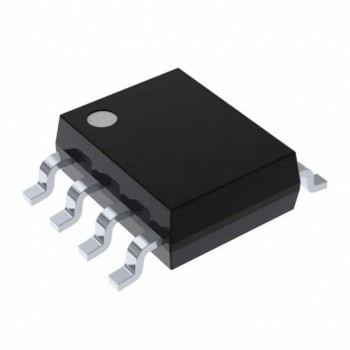

DS1040Z-A15

Manufacturer Part	DS1040Z-A15
Manufacturer	Analog Devices Inc./Maxim Integrated
Description	IC DELAY LINE 5TAP 15NS 8SOIC
Category	Integrated Circuits (ICs)
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Obsolete
Number of Taps/Steps:	5
Function:	1-Shot, Programmable
Delay to 1st Tap:	5ns
Tap Increment:	2.5 ns
Available Total Delays:	15ns
Number of Independent Delays:	1
Voltage - Supply:	4.75V ~ 5.25V
Operating Temperature:	0°C ~ 70°C
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	8-SOIC
